Orbbec Gemini E for Robotics¶

This guide is a practical training document for using the Orbbec Gemini E in robotics projects with ROS 2 and the OrbbecSDK_ROS2 wrapper.

The focus here is not just “how to make the camera work”, but how to use it correctly on a robot: where it fits, where it does not, how to tune it for low latency, and how to avoid the common mistakes that waste integration time.

Original datasheet attachment: Gemini E Datasheet v1.1 (PDF)

Orbbec Gemini E front view

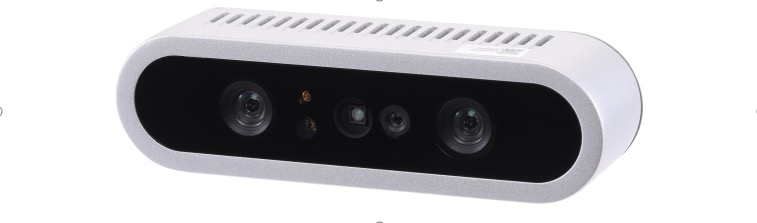

Front view of the Gemini E camera from the datasheet.

1. What the Gemini E is good at¶

The Gemini E is a short-range RGB-D camera based on active stereo IR. It is a strong fit for:

Indoor mobile robots
Tabletop perception
Manipulation and grasping pipelines
Human detection and nearby obstacle sensing
Robot docking and short-range scene understanding

It is not the right tool for every vision problem. The biggest constraints are:

No built-in IMU
USB 2.0 bandwidth
Best depth range is close to the robot
Active IR depth is much better indoors than in strong sunlight

If your stack depends on visual-inertial odometry, tight motion estimation, or robust outdoor operation in bright sun, plan for an external IMU and be realistic about depth performance.

2. Key hardware facts¶

The following values come from the Gemini E datasheet v1.1:

Item	Value
Depth technology	Active Stereo IR
Depth field of view	79 degrees horizontal x 62 degrees vertical
Color field of view	Up to 84.3 degrees horizontal x 53.6 degrees vertical
Depth range	0.2 m to 2.5 m
Depth frame rates	Up to 30 fps
RGB frame rates	Up to 30 fps
RGB max resolution	1920 x 1080
Connection	USB 2.0 Type-C for power and data
Power	Average below 2.3 W, peak 5 W
IMU	Not available
Dimensions	89.82 x 25.10 x 25.10 mm
Weight	88.3 g
Mounting	Bottom M3, rear 2 x M3
Operating environment	10 C to 40 C, indoor or semi-outdoor

What these numbers mean for robot design¶

0.2 m to 2.5 m means the Gemini E is a near-field sensor. Treat it as a local perception camera, not a long-range navigation lidar replacement.
USB 2.0 means bandwidth matters. High resolution RGB plus depth plus IR plus point cloud at the same time can overload weaker systems.
No IMU means you should not expect the camera alone to support full VIO or stable motion estimation on a moving robot.
Wide FOV is useful when the camera is mounted close to the work area or low on a mobile base.

Gemini E sensor layout

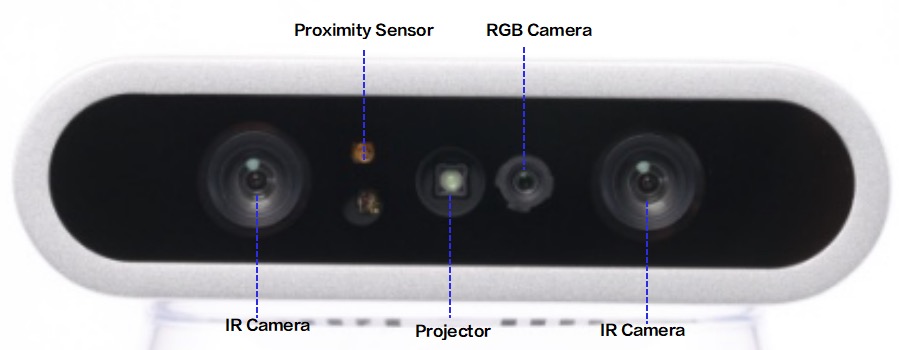

Sensor layout from the datasheet showing the stereo IR cameras, projector, RGB camera, and proximity sensor.

Gemini E robotics integration diagram

Recommended robotics integration path: use RGB plus depth as the default, keep point clouds optional, and add an external IMU when state estimation quality matters.

3. Best robotics use cases¶

Mobile robot perception¶

Use the Gemini E for:

Nearby obstacle perception
Docking
Doorway and corridor understanding
Detecting low or irregular obstacles that 2D lidar can miss

Recommended working range:

0.25 m to 2.0 m for practical onboard use

Manipulation and pick-and-place¶

Use the Gemini E for:

Object detection with aligned depth
Tabletop segmentation
Bin observation at short range
Hand-eye setups on small robot arms

Recommended working range:

0.2 m to 1.2 m

Human-robot interaction¶

The wide field of view and short-range depth make it useful for:

People detection near the robot
Gesture-adjacent interaction
Service robot front-facing perception

4. Where to mount it on a robot¶

Good mechanical integration matters as much as software.

Mount the camera rigidly. Small vibrations become noisy depth edges.
Keep the front glass clean. Fingerprints and dust reduce image quality.
Avoid mounting directly beside motors, hot compute modules, or exhaust airflow.
If you use an enclosure, leave space for cooling. The datasheet explicitly warns about heat buildup.
Use a short, good-quality USB cable. The datasheet recommends a certified cable and a maximum length of about 1 m to 1.5 m.
For a mobile base, a slight downward tilt often works best so the depth image covers the floor in front of the robot.
For manipulation, mount the camera so the main workspace sits comfortably inside the 0.2 m to 1.2 m depth region.

Practical mounting suggestions¶

Front-facing mobile robot: mount above bumper height, angled down 10 to 20 degrees.
Tabletop robot arm: mount above or beside the workspace with clear sight lines to the whole table.
Docking robot: keep the camera centered to reduce calibration complexity.

Gemini E front dimensions

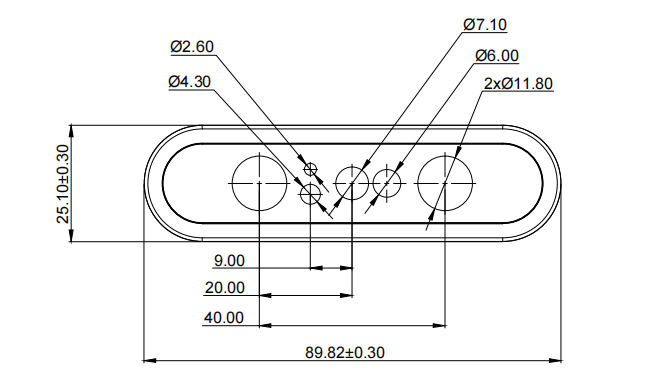

Front mechanical dimensions from the datasheet.

Gemini E side mounting details

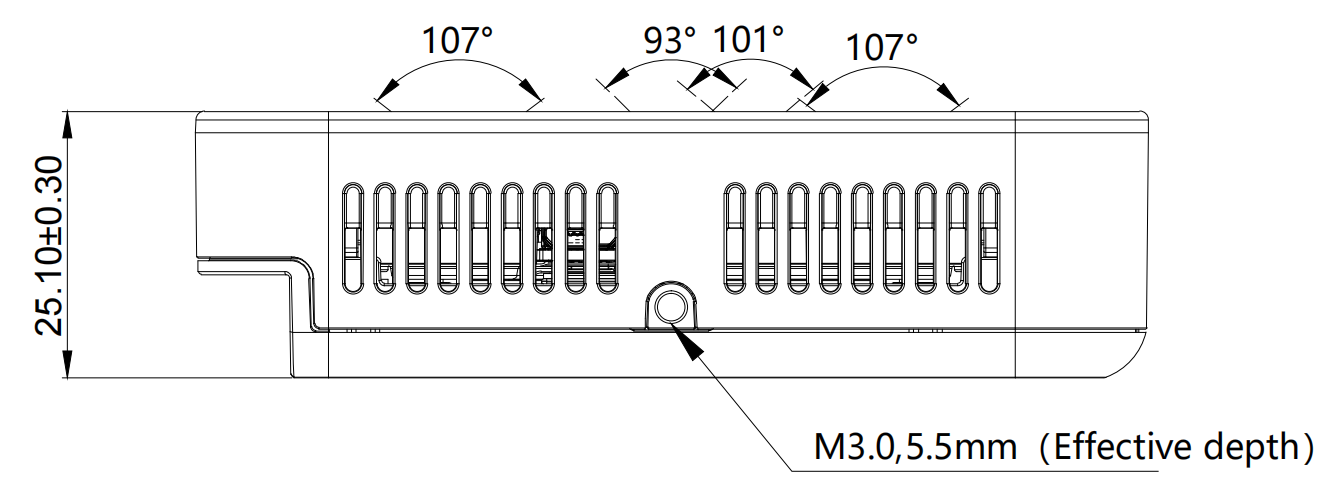

Side view showing body dimensions and the M3 mounting point depth.

Gemini E rear USB-C view

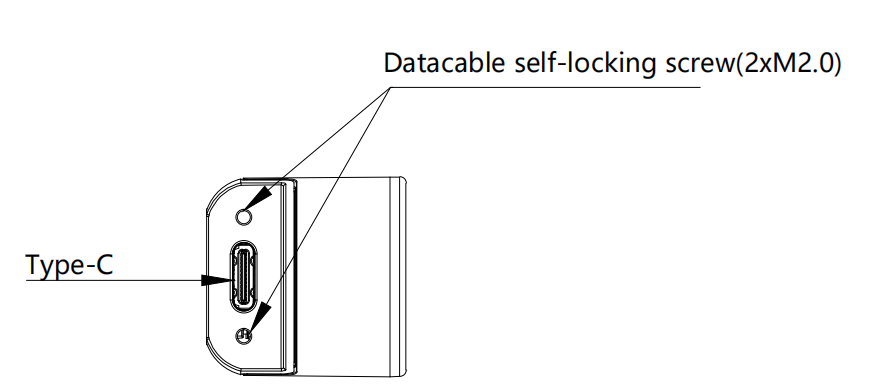

Rear view showing the USB Type-C interface and rear fastener locations.

5. ROS 2 stack used in this workspace¶

This guide assumes the Orbbec ROS 2 wrapper is available in a workspace such as:

~/ros2_ws/src/OrbbecSDK_ROS2

For Gemini E, the relevant launch file is:

orbbec_camera/launch/gemini_e.launch.py

The local launch defaults are important:

Stream	Default setting in `gemini_e.launch.py`
Color	`640x480 @ 30`, format `MJPG`
Depth	`640x480 @ 30`, format `Y11`
IR	`640x480 @ 30`, format `Y10`
Point cloud	Enabled
Colored point cloud	Disabled
Depth registration	Disabled
Soft filter	Enabled
Align mode	`HW`

Important implication¶

The default launch enables point clouds. For many robots, that is not the best default. If your downstream stack only needs depth images, disable point cloud generation to save CPU, bandwidth, and DDS load.

6. Install and build¶

If the package is already built in your workspace, skip to the next section.

cd ~/ros2_ws/src
git clone https://github.com/orbbec/OrbbecSDK_ROS2.git

sudo apt install libgflags-dev nlohmann-json3-dev \
  ros-$ROS_DISTRO-image-transport \
  ros-$ROS_DISTRO-image-transport-plugins \
  ros-$ROS_DISTRO-compressed-image-transport \
  ros-$ROS_DISTRO-image-publisher \
  ros-$ROS_DISTRO-camera-info-manager \
  ros-$ROS_DISTRO-diagnostic-updater \
  ros-$ROS_DISTRO-diagnostic-msgs \
  ros-$ROS_DISTRO-statistics-msgs \
  ros-$ROS_DISTRO-backward-ros \
  libdw-dev

cd ~/ros2_ws/src/OrbbecSDK_ROS2/orbbec_camera/scripts
sudo bash install_udev_rules.sh
sudo udevadm control --reload-rules
sudo udevadm trigger

cd ~/ros2_ws
colcon build --packages-select orbbec_camera orbbec_camera_msgs orbbec_description \
  --event-handlers console_direct+ \
  --cmake-args -DCMAKE_BUILD_TYPE=Release

source ~/ros2_ws/install/setup.bash

7. First bring-up¶

Start with the simplest reliable launch:

source ~/ros2_ws/install/setup.bash
ros2 launch orbbec_camera gemini_e.launch.py

In another terminal:

source ~/ros2_ws/install/setup.bash
ros2 topic list
ros2 service call /camera/get_device_info orbbec_camera_msgs/srv/GetDeviceInfo '{}'
ros2 service call /camera/get_sdk_version orbbec_camera_msgs/srv/GetString '{}'

To visualize:

source ~/ros2_ws/install/setup.bash
rviz2

Recommended first checks:

Confirm /camera/depth/image_raw is publishing
Confirm /camera/color/image_raw is publishing
Confirm TF includes camera_link and optical frames
Confirm frame rate is stable with ros2 topic hz

Example:

ros2 topic hz /camera/depth/image_raw
ros2 topic hz /camera/color/image_raw

RViz examples¶

The following screenshots are representative RViz views from the local Orbbec ROS 2 wrapper documentation. They are useful as visual references when bringing the camera up for the first time.

RViz depth stream example

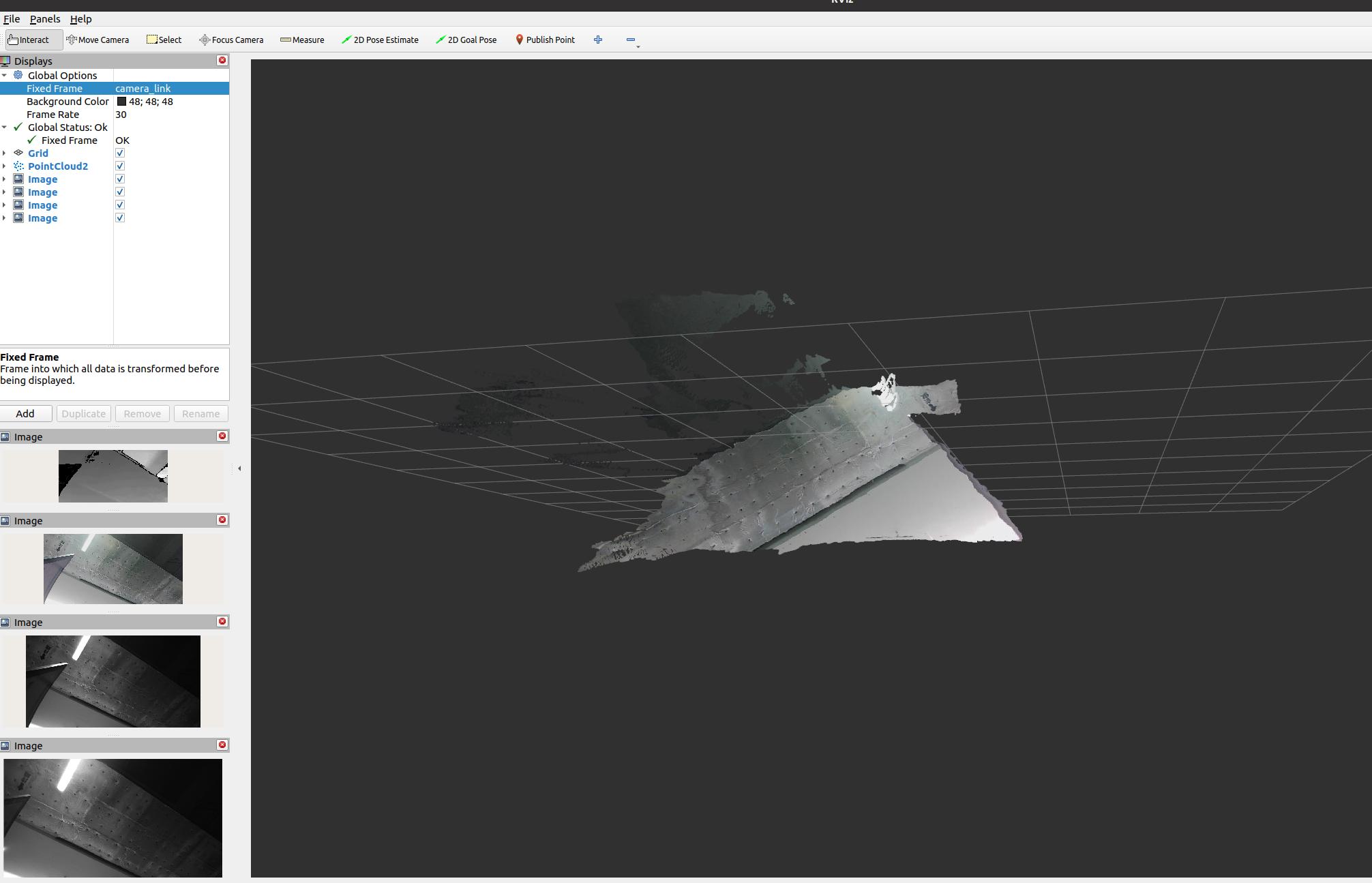

Depth and image streams visible in RViz. This is the kind of view you want during first bring-up when verifying that the camera is publishing stable image data.

RViz depth point cloud example

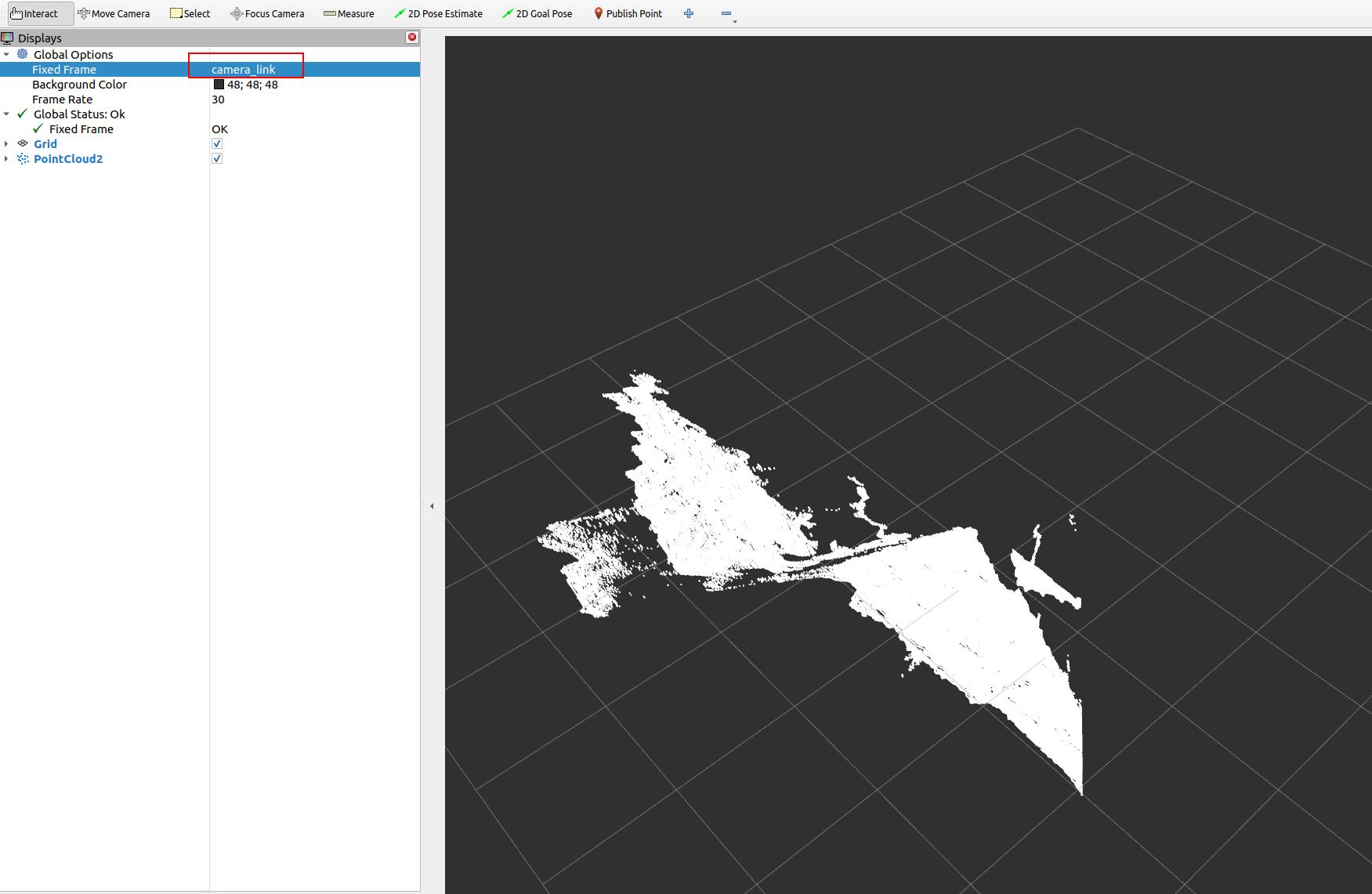

Depth point cloud view in RViz using /camera/depth/points. This is useful for validating geometry, floor visibility, and TF orientation.

RViz aligned RGB-D example

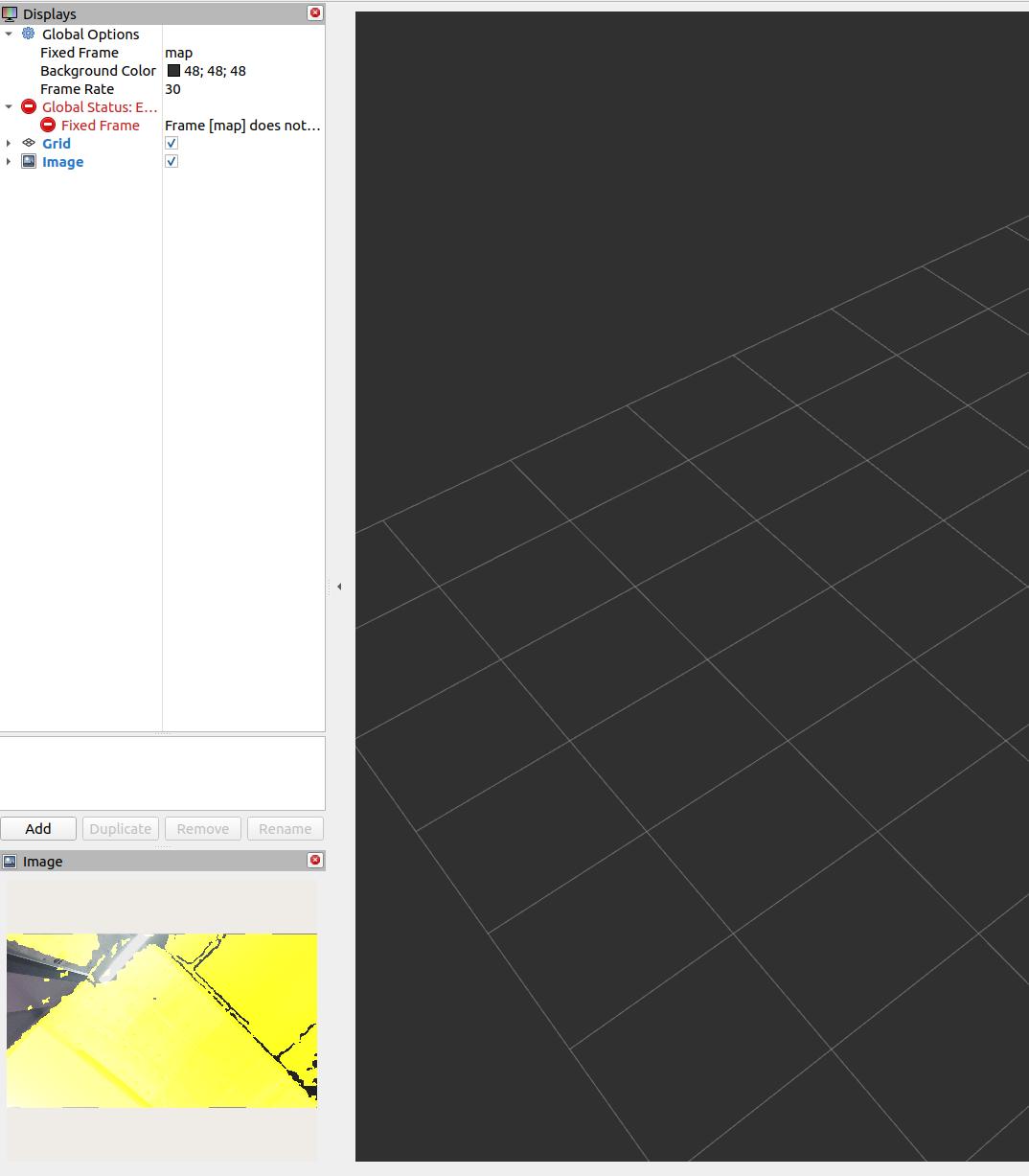

Aligned RGB-D style output in RViz. This is the kind of image you should expect when depth_registration:=true is enabled and you are checking whether depth correctly overlays the color image.

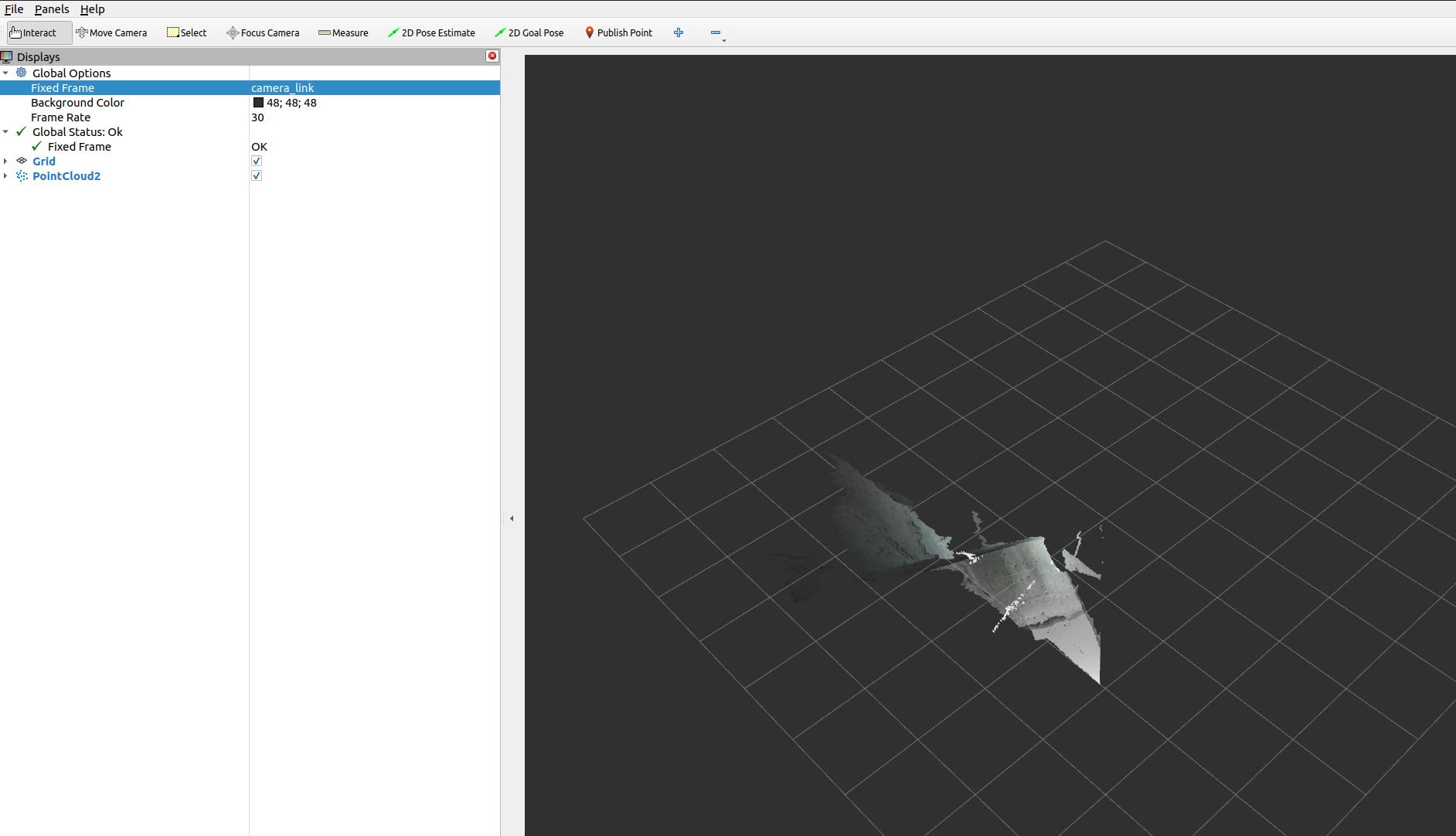

RViz colored point cloud example

Colored point cloud in RViz using /camera/depth_registered/points. Use this when the downstream stack truly needs fused color and 3D structure.

8. Core topics you will actually use¶

Topic	Use
`/camera/color/image_raw`	RGB image for detection or visualization
`/camera/depth/image_raw`	Raw depth image
`/camera/depth/points`	Point cloud from depth
`/camera/depth_registered/points`	Colored point cloud
`/camera/ir/image_raw`	IR image for debugging or custom vision
`/camera/color/camera_info`	Color intrinsics
`/camera/depth/camera_info`	Depth intrinsics
`/diagnostics`	Camera diagnostics

If your perception stack does not consume point clouds directly, use depth images first. It is usually cheaper and easier to debug.

9. Recommended launch profiles for robot work¶

Profile A: Low-latency mobile robot depth¶

Use this when the robot mainly needs near-field obstacle perception.

ros2 launch orbbec_camera gemini_e.launch.py \
  enable_color:=false \
  enable_ir:=false \
  enable_point_cloud:=false \
  enable_colored_point_cloud:=false \
  depth_registration:=false \
  depth_qos:=SENSOR_DATA \
  depth_camera_info_qos:=SENSOR_DATA

Why:

Lowest bandwidth
Lowest CPU load
Simplest path into depthimage_to_laserscan or custom obstacle logic

Profile B: RGB-D perception for detection and manipulation¶

Use this when you need color plus aligned depth for object detection, segmentation, or grasp planning.

ros2 launch orbbec_camera gemini_e.launch.py \
  enable_ir:=false \
  enable_point_cloud:=false \
  enable_colored_point_cloud:=false \
  depth_registration:=true \
  color_qos:=SENSOR_DATA \
  depth_qos:=SENSOR_DATA \
  color_camera_info_qos:=SENSOR_DATA \
  depth_camera_info_qos:=SENSOR_DATA

Why:

Keeps RGB and depth available
Depth registration makes RGB-depth fusion easier
Avoids point cloud overhead unless the pipeline really needs it

Profile C: Point cloud perception¶

Use this only if the downstream node truly needs 3D points.

ros2 launch orbbec_camera gemini_e.launch.py \
  enable_ir:=false \
  enable_point_cloud:=true \
  enable_colored_point_cloud:=true \
  depth_registration:=true \
  point_cloud_qos:=SENSOR_DATA \
  color_qos:=SENSOR_DATA \
  depth_qos:=SENSOR_DATA

Why:

Gives you a colored point cloud
Good for 3D inspection, segmentation, or local mapping

Tradeoff:

Highest CPU, memory, and DDS load of the common profiles

Profile D: Calibration and debugging¶

Use this when checking overlay quality, exposure, or stream issues.

ros2 launch orbbec_camera gemini_e.launch.py \
  depth_registration:=true \
  enable_d2c_viewer:=true \
  log_level:=debug

Why:

Makes RGB-depth alignment errors obvious
Debug logs help when the wrapper is unstable or the stream fails

10. Tuning rules that matter¶

10.1 Disable what you do not use¶

This is the single most useful rule.

If you do not need point clouds, disable them.
If you do not need IR, disable it.
If you do not need RGB, disable it.
If you do not need depth registration, leave it off.

10.2 Use `SENSOR_DATA` QoS for robot sensor pipelines¶

For local perception graphs, SENSOR_DATA is usually the right choice for:

color_qos
depth_qos
ir_qos
point_cloud_qos
camera info QoS

This reduces lag compared with more reliable but slower defaults in many robotics workloads.

10.3 Respect USB 2.0 limits¶

The Gemini E is a USB 2.0 camera. That matters.

Prefer 640x480 or 640x360 for reliable onboard processing
Keep RGB in MJPG when possible
Avoid enabling every stream at full rate on weak CPUs
If performance becomes unstable, reduce streams before reducing code quality elsewhere

10.4 Use aligned depth only when needed¶

depth_registration:=true is useful for:

RGB object detection with depth lookup
colored point clouds
grasp selection in image space

But it adds computation. Leave it off for pure navigation or pure depth pipelines.

10.5 Add an external IMU if the robot moves aggressively¶

The datasheet lists IMU: N/A.

If you need:

motion compensation
tilt-aware perception
VIO
visual-inertial SLAM

then use a separate IMU and fuse it with your robot state estimation stack.

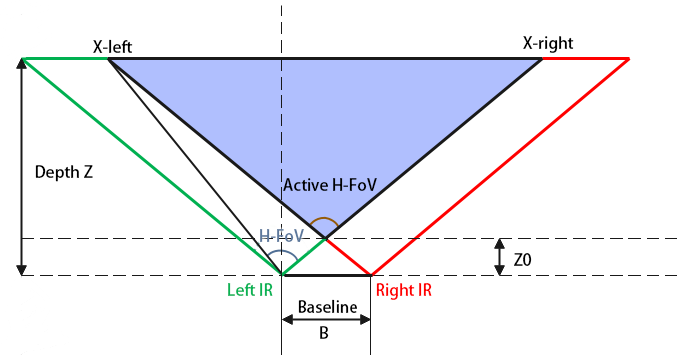

Gemini E depth field of view diagram

Depth field-of-view geometry from the datasheet. This is useful when estimating how much floor, workspace, or docking target area is visible at a given mounting height and distance.

11. Recommended ROS 2 integration patterns¶

Nav2 or collision avoidance¶

Good approaches:

Convert depth image to a 2D scan using depthimage_to_laserscan
Convert point cloud to scan using pointcloud_to_laserscan
Fuse the camera with wheel odometry and an IMU in the navigation stack

Prefer depth image conversion first if you want the lightest pipeline.

SLAM and localization¶

The Gemini E can support RGB-D or depth-assisted mapping, but do not assume the camera alone is enough for robust localization on a moving robot.

Recommended sensor set:

Gemini E
Wheel odometry
External IMU

Manipulation¶

For robot arms or tabletop robots:

Enable color and depth
Enable depth_registration
Keep the workspace inside the short-range zone
Use a fixed, calibrated transform from robot base or tool frame to camera frame

12. TF and frame setup¶

Do not leave TF as an afterthought.

The launch file already publishes a static transform from base_link to the camera link. You should set the mounting values correctly:

ros2 launch orbbec_camera gemini_e.launch.py \
  base_to_camera_x:=0.18 \
  base_to_camera_y:=0.0 \
  base_to_camera_z:=0.42 \
  base_to_camera_roll:=0.0 \
  base_to_camera_pitch:=-0.20 \
  base_to_camera_yaw:=3.141592653589793

Replace the values with your real mount geometry.

Bad TF is one of the most common reasons for:

wrong point cloud orientation
bad floor interpretation
incorrect obstacle positions
failed camera-arm coordination

13. Camera control services you should know¶

Useful runtime services exposed by the wrapper include:

/camera/get_device_info
/camera/get_sdk_version
/camera/get_color_exposure
/camera/get_ir_exposure
/camera/get_white_balance
/camera/set_color_auto_exposure
/camera/set_ir_auto_exposure
/camera/set_laser_enable
/camera/toggle_color
/camera/toggle_depth
/camera/toggle_ir

Examples:

ros2 service call /camera/get_device_info orbbec_camera_msgs/srv/GetDeviceInfo '{}'
ros2 service call /camera/set_color_auto_exposure std_srvs/srv/SetBool '{data: false}'
ros2 service call /camera/set_laser_enable std_srvs/srv/SetBool '{data: true}'

These are useful when you are tuning the camera on a live robot without restarting the full stack.

14. Performance tuning on Linux¶

The local Orbbec wrapper documentation recommends DDS and USB tuning for large image streams.

DDS guidance¶

For single-machine robotics setups, CycloneDDS is often a safer choice than untuned defaults.

Common local-only environment settings:

export ROS_DOMAIN_ID=42
export ROS_LOCALHOST_ONLY=1
export CYCLONEDDS_URI=file:///etc/cyclonedds/config.xml

Important:

Use ROS_LOCALHOST_ONLY=1 only when all nodes run on the same machine.
If you need remote RViz, another onboard computer, or distributed robots, do not lock ROS traffic to localhost.

USB buffer tuning¶

If you get stream dropouts, especially with multiple cameras or heavy traffic:

echo 128 | sudo tee /sys/module/usbcore/parameters/usbfs_memory_mb

CPU and transport advice¶

Build the wrapper in Release
Prefer fewer streams over more compression tricks
Avoid unnecessary RViz displays during benchmark runs
If point clouds are only for logging, do not generate them during live operation

15. Failure modes and how to think about them¶

No device detected¶

Check:

USB cable quality
udev rules
power from host port
reconnect the camera fully

The datasheet explicitly recommends unplugging and reconnecting if the camera stops responding.

Frame drops or lag¶

Usually caused by one of these:

Too many active streams
Point cloud enabled when not needed
Weak USB path or hub
Untuned DDS
RViz overloading the machine

Reduce complexity first. Do not start by blaming the algorithm stack.

Poor outdoor or reflective-surface depth¶

This is expected behavior for many active IR depth systems.

Use it primarily indoors
Shield from direct sunlight where possible
Expect weak returns on black, shiny, or transparent objects

Bad perception while the robot is moving¶

The likely causes are:

no IMU
motion blur in RGB
aggressive robot motion
poor TF calibration

Do not try to “tune around” missing inertial information if the application fundamentally needs it.

16. A practical starting configuration¶

If you want one balanced starting point for most robots, use this:

ros2 launch orbbec_camera gemini_e.launch.py \
  enable_ir:=false \
  enable_point_cloud:=false \
  enable_colored_point_cloud:=false \
  depth_registration:=true \
  color_qos:=SENSOR_DATA \
  depth_qos:=SENSOR_DATA \
  color_camera_info_qos:=SENSOR_DATA \
  depth_camera_info_qos:=SENSOR_DATA

This gives:

RGB plus depth
simpler debugging than a full point cloud pipeline
enough information for most perception tasks
a manageable load on typical robot computers

17. Deployment checklist¶

Before declaring the camera “ready”, verify all of the following:

The camera is rigidly mounted
The lens and cover glass are clean
The TF from base_link to the camera is measured correctly
Only required streams are enabled
ros2 topic hz is stable at the expected frame rate
CPU usage is acceptable during full robot operation
Depth works across the actual working distance of the robot
The robot stack is tested both stationary and moving
You have an external IMU if the application needs one

18. References¶

Gemini E Datasheet v1.1 (PDF)
OrbbecSDK ROS 2 wrapper README and gemini_e.launch.py from the local ROS 2 workspace
Orbbec developer portal: https://orbbec3d.com/developers/

Orbbec Gemini E for Robotics¶

1. What the Gemini E is good at¶

2. Key hardware facts¶

What these numbers mean for robot design¶

3. Best robotics use cases¶

Mobile robot perception¶

Manipulation and pick-and-place¶

Human-robot interaction¶

4. Where to mount it on a robot¶

Practical mounting suggestions¶

5. ROS 2 stack used in this workspace¶

Important implication¶

6. Install and build¶

7. First bring-up¶

RViz examples¶

8. Core topics you will actually use¶

9. Recommended launch profiles for robot work¶

Profile A: Low-latency mobile robot depth¶

Profile B: RGB-D perception for detection and manipulation¶

Profile C: Point cloud perception¶

Profile D: Calibration and debugging¶

10. Tuning rules that matter¶

10.1 Disable what you do not use¶

10.2 Use SENSOR_DATA QoS for robot sensor pipelines¶

10.3 Respect USB 2.0 limits¶

10.4 Use aligned depth only when needed¶

10.5 Add an external IMU if the robot moves aggressively¶

11. Recommended ROS 2 integration patterns¶

Nav2 or collision avoidance¶

SLAM and localization¶

Manipulation¶

12. TF and frame setup¶

13. Camera control services you should know¶

14. Performance tuning on Linux¶

DDS guidance¶

USB buffer tuning¶

CPU and transport advice¶

15. Failure modes and how to think about them¶

No device detected¶

Frame drops or lag¶

Poor outdoor or reflective-surface depth¶

Bad perception while the robot is moving¶

16. A practical starting configuration¶

17. Deployment checklist¶

18. References¶

10.2 Use `SENSOR_DATA` QoS for robot sensor pipelines¶
